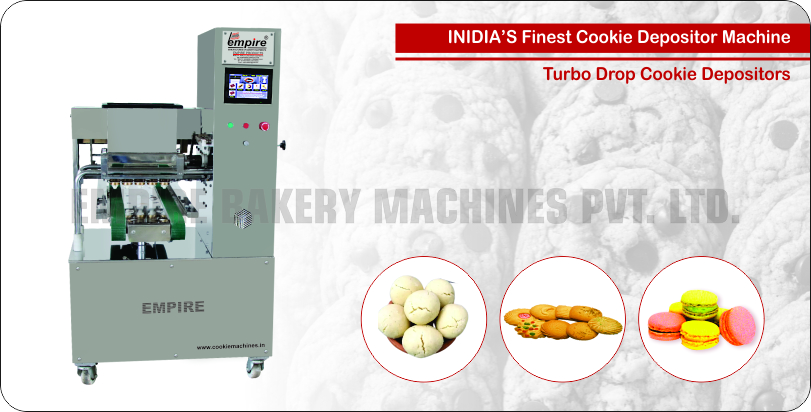

Turbo Drop Cookie Depositors
Easy & Safe
The programming of the machine is so simple that even uneducated person can operate. All parts of the machines can be replaced without any difficulty even by semi-skilled labour and requires minimal tools. Parts can be easily removed for washing at the end of each shift. This machine is not only very easy to operate but also very safe. All the safety measures are already built-in, for instance, if the tray is removed, dough will not drop. There are also features for the safety of nozzles. All parts coming in physical contact are made of SS and can be demmounted with ease at the end of the run, for complete washing. Use of CNC machining ensures accuracy of parts and inter-changeability of spares.
State-of-the-art cookie production
A clear cut example of technology and innovation, this machine is fully programmable in function, where the following can be automatically adjusted through a large touch screen interface for more onvenience.
1) Number of rows in a tray
2) Gap between rows
3) Wight of cookies
4) Rotation of the nozzles
The fast PLC, controls all the functions and logic of the machine. You will be able to store many programs for individual products, which can be recalled by using the touchcreen.
Technical Specifications:
1) The machine is fitted with latest 7" coloured T.F.T. touch screen which means lot of space (Lot of Recipes Storage Capacity) in short now production of cookies is on your finger tips.
2) 55-65 Strokes per minute
3) Gears & Motors (EF2) by MGM Varvel (Made in Italy)
4) Servo Drives by Panasonic
5) Available in 4 to 10 nozzles suitable 10" to 26" tray width lenght of the tray as per customer's choice
6) Two wire cut dies & one depositor die included with the complete set of nozzles
7) Total poeer requires: 3 to 4 HP
Good Positioning Control:
The tray movement is powered by a Servo Motor, which result in adequate positioning control.
Unmatched Flexibility:
This machine operates on independent motors for all the functions, which give you the flexibility to make different kinds of products.
Other Salient Features of This Machine Are:
1) Nozzle roation is powered by a multi speed geared motor.
2) Up and down movement of the table is powered by a Servo Geared Motor.
3) Wire cut frame is powered by a geared motor.
4) Table height adjustment is fully automatic.
5) Multi layered & conical shaped cookies.
6) Tip control mechanism.
7) Hole in center of the cookies for depositing filling jam etc.
8) Servo drive controls for high speed and accuracy.
Powered with the best:
World-class products have been used in the machine to deliver performance of the highest level. Spare parts and equipment used for the machines are provided by the best in the industry.
Electrical System:
Such as PLC, Touch Screens, Servo Motors are from DELTA, PANASONIC, SCHNEIDER or OMRON (as per availability)
Extra Attachments ( Accessories):
1) Pump head for muffins and sponge cake.
2) Double color tank for multi-colored cookies.
3) Special double die for small size cookies.
4) American non-stick coating.
